Powerful and robust industrial equipment for high production sectors.
Construction, wood, metal or exterior painting projects where a compressed air line is not accessible.
2.7 H.P. single-phase motor that reaches 220 bar (3,191 psi) of maximum fluid pressure and a large flow rate of up to 9 L/min. that allow its continued use with one or two guns. Ease of operation. Easy cleaning thanks to the incorporation of a recirculation probe.
Large rear wheels, and swivel front wheels to facilitate movement on construction sites.
Electric membrane pump with absorption probe that, optionally, can be equipped with a 25 L deposit.
Versatile equipment for the application of primers, enamels and plastics, waterproofing and intumescent.
Includes special anti-vibration system.
| Maximum pressure | 220 bar |
| Free flow | 9 L/min |
| Maximum recommended nozzle | 0.043” |
| Maximum recommended nozzle with 2 guns | 0.023” |
| Engine Type | Single-phase |
| Voltage | 230 V / 50 Hz |
| Power | 2.9 H.P. |
| Sound level | as per CE regulation: 75 DB |
| Code | Version |
|---|---|
| 30940901 | Atlanta 800 Trolley&suction Probe |
| 30940999 | Atlanta 800 Complete Equipment |

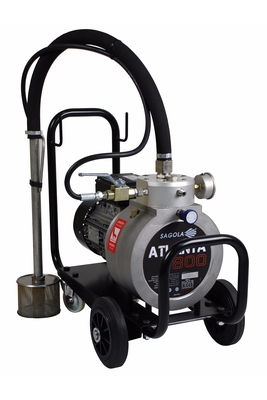

Atlanta 800
Manual
