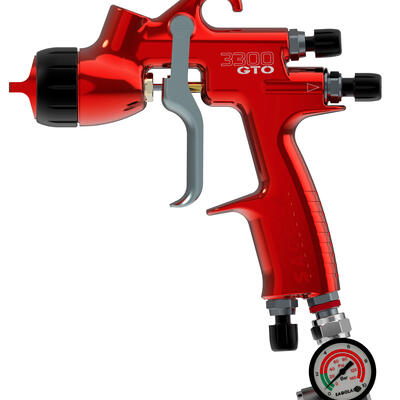

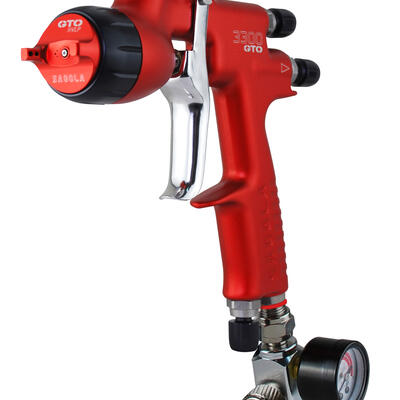

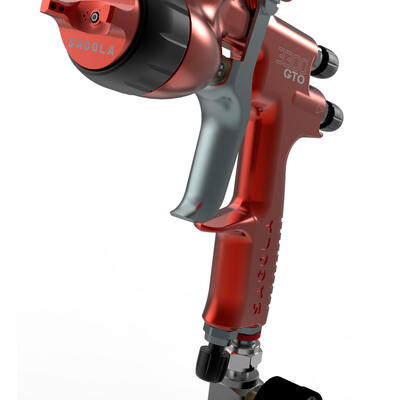

The New 3300 GTO CAR is launched with the highest SAGOLA manufacturing standards, competitive prices whilst maintaining a superb service and offering the best warrantee (3 years). All this with strict compliance with the most demanding standards of manufacture and emissions of solvents, with EPA and HVLP systems.
Its new forged and anodized body and more ergonomic design together with the highest quality and efficiency nozzles, make a more attractive and versatile spray gun with an excellent value for money offering a wide range of solutions for Bodyshop sector.
SAGOLA renews and improves the mid-high range of spray guns. The new 3300 GTO CAR, is the result of the fusion of two of the most renown products: 3300 PRO (industry) and 4100 GTO (bodyshop).
VERSATILITY: WIDE RANGE OF SOLUTIONS
At the forefront of ergonomics, balance and comfort when painting.
Light but robust body, maintaining the construction in aluminium and stainless steel in all its pieces, giving it maximum robustness and minimum maintenance.
Easy and smooth use.
ANODIZED HIGH RESISTANCE with ANTI-CORROSIVE PROTECTION.
Easier for cleaning and maintenance process.

New Regulators design
Modern design. Without sharp edges. Better regulation precision. It avoids working loose unwittingly.

Paint packing gland
One single piece automatic Paint packing gland. It avoids manipulation and breakage of the glands and makes easier to remove it for a thorough cleaning.

Aircaps
Ultra-fine atomization and larger fans. Designed for the best response at any pressure.

Single axis system
Inherited directly from the Xtreme range, simplified design. Maximum reduction of components and maintenance.
Air Cap Tech | |||
---|---|---|---|
![]() |
1.20 | Clearcoats, Waterborne basecoats | |
1.30 | HS and MS Clearcoats | ||
1.40 | HS/MS Clearcoats and single-stage paints. High speed |
Air Cap HVLP | |||
---|---|---|---|
![]() |
1.20 | Waterborne paints. Maximum saving | |
1.30 | Especially for waterborne and sovent-based basecoats |
Weight without cup | 595 g. |
Dimensions with cup | 18.2 x 4.8 x 22 cm. |
Air inlet couplings | BSP 1/4” M |
Cup capacity | 650 ml |
Cup | Anti-drip system |
Maximum design pressure | 8 bar |
Maximum recommended inlet pressure (working pressure) | 2 bar |
Maximum recommended application distance GTO Tech | 18 - 20 cm |
Maximum recommended application distance GTO HVLP | 12 - 15 cm |
Average paint output flow (nozzle 1.4 mm. 20”) GTO Tech | 179 g/min |
Average paint output flow (nozzle 1.4 mm. 20”) GTO HVLP | 161 g/min |
Air consumption of each aircap (2 bar inlet) GTO Tech | 285 L/min. |
Air consumption (2 bar inlet) GTO HVLP | 360 L/min |
Fan size GTO Tech | 305 - 315 mm. |
Fan size GTO HVLP | 245 - 250 mm. |
Average sound pressure level | 80 dB |
Code | Version |
---|---|
10141550 | Gravity Spray Gun 3300 GTO CAR 1.20[TECH |
10141551 | Gravity Spray Gun 3300 GTO CAR 1.30[TECH |
10141552 | Gravity Spray Gun 3300 GTO CAR 1.40[TECH |
10141553 | Gravity Spray Gun 3300 GTO CAR 1.20[HVLP |
10141554 | Gravity Spray Gun 3300 GTO CAR 1.30[HVLP |
