A perfect fusion between speed and high transfer with quality finishes of XTREME aerographic systems.
Designed to last over time thanks to its robustness and quality of its components. To this we add its manageability and softness that makes it the ideal pressure spray gun for difficult jobs, de high microns, high-speed application and complicated and highly abrasive products.
In the ceramic applications, we provide the maximum resistance. And in vitroceramic, we can achieve the highest degree of refinement and finishing quality
Applications
Toilettes, Roof tiles, Kitchen equipment, Plates, Tiles, Engobe, Ceramic enamels, Vitrified enamels, Structural anticorrosive treatment, etc.
PACKING-GLAND
Self-adjusting of
high durability. STAINLESS STEEL
body quick change version.
NOZZLE
With closer in TUNGSTEN CARBIDE
(maximum hardness level) and body
in STAINLESS STEEL.
Reinforced REEL
In
STAINLESS STEEL.
Very HIGH RESISTANCE
against mechanical
abrasion
NEEDLE
100% TUNGSTEN CARBIDE eliminating
premature wear in packing-gland and
trigger zone.
ANODISED ALUMINIUM AIRCAPS
(corrosion free)
of HIGH STRENGTH and
DURABILITY. Ideal for
aggressive environments.
AIR VALVE
HIGH FLOW AIR VALVE
“SOFT FLOW”
Ideal for work
at high pressures
| Air Cap XT03 | |||
|---|---|---|---|
|
1.40 | 1.4 [XT03] | |
| Air Cap 78 | |||
|---|---|---|---|
|
1.4 | 1.4 [78] | |
| Air Cap 67 | |||
|---|---|---|---|
|
1.8 | 1.8 [67] | |
| Air Cap 64 | |||
|---|---|---|---|
|
2.2 | 2.2 [64] | |
| 2.5 | 2.5 [64] | ||
| Air Cap 62 | |||
|---|---|---|---|
|
2.8 | 2.8 [62] | |
| Weight | 552g |
| Dimensions | 20 x 19 x 4,2 cm |
| Product inlet | 3/8” M BSP |
| Air inlet | 1/4” M BSP |
| Maximum design pressure | 10 bar |
| Maximum recommended inlet pressure (working pressure) | 4 bar |
| Air consumption Aircap 1.4[78] | 410 L/min |
| Air consumption Aircap 2.5[64] | 410 L/min |
| Air consumption Aircap 2.8[62] | 410 L/min |
| Air consumption Aircap 2.2[64] | 390 L/min |
| Air consumption Aircap 1.8[67] | 400 L/min |
| Air consumption Aircap XT03 | 460 L/min |
| Materials in contact with the product | Stainless Steel, POM, Teflón, Nylon and Tungsten Carbide |
| ATEX | (Ex) II 2 GX |
| Code | Version |
|---|---|
| 10152130 | Spray Gun 4100 XTREMECeramic 1.40 [78] |
| 10152131 | Spray Gun 4100 XTREMECeramic 1.40[XT03] |
| 10152132 | Spray Gun 4100 XTREMECeramic 1.80 [67] |
| 10152133 | Spray Gun 4100 XTREMECeramic 2.20 [64] |
| 10152134 | Spray Gun 4100 XTREMECeramic 2.50 [64] |
| 10152135 | Spray Gun 4100 XTREMECeramic 2.80 [62] |
| 10152136 | Spray Gun 4100 XTREMECeramic 2.80 [63c] |

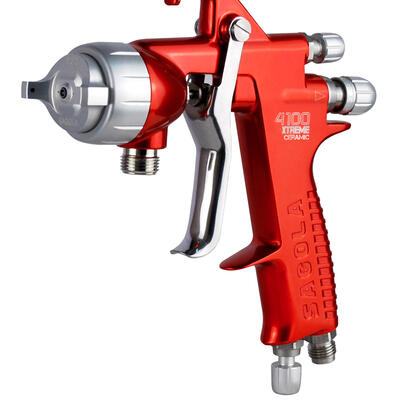

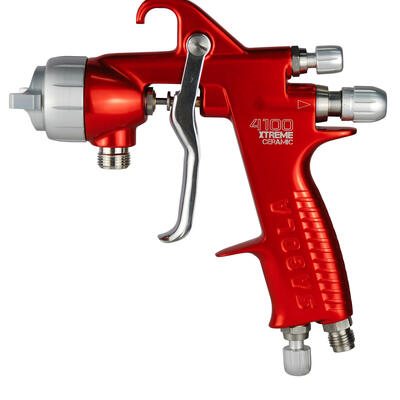

Pistol 4100 XTREME Ceramic
Manual
Pistol 4100 XTREME Ceramic
Exploded view
