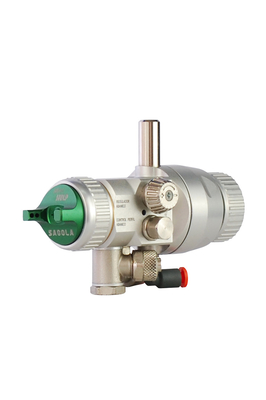

Automatic gun, small size and high precision.
0,3 – 1,80 mm. fluid nozzles.
Mini Xtreme spraying system.
Wide regulation range; paint flow, fan, and pattern shape.
Suitable for small parts painting, and machinery with reduced spaces HVLP and EPA high transfer aircaps.

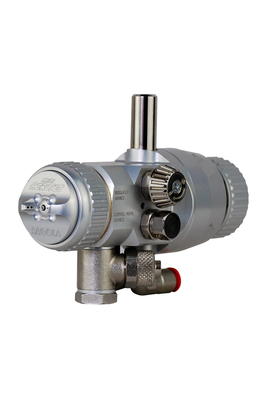

AEROJET aircap. High precision.

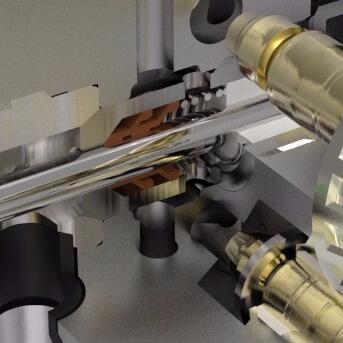

Automatic paint packing gland
Automatic paint packing gland without gaskets that require handling

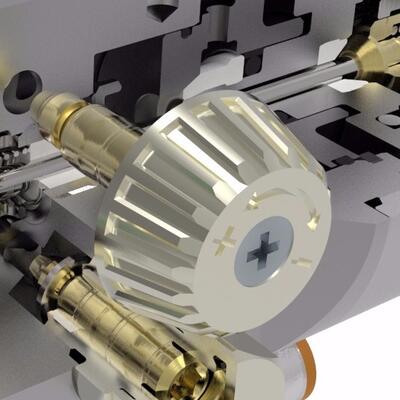

Fan regulator
This regulator allows us to adjust the size of the fan (of the atomisation air).

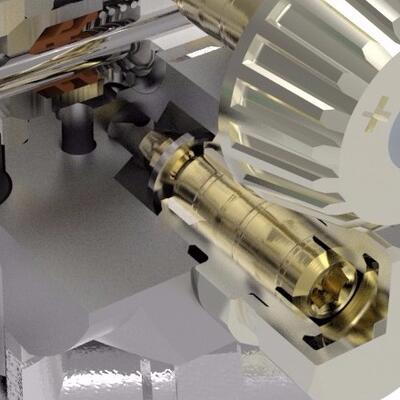

Fan control regulator
This regulator controls the quantity and distribution of air between the lugs and central holes, allowing a perfect distribution of the spray pattern independently of the viscosity of the product.

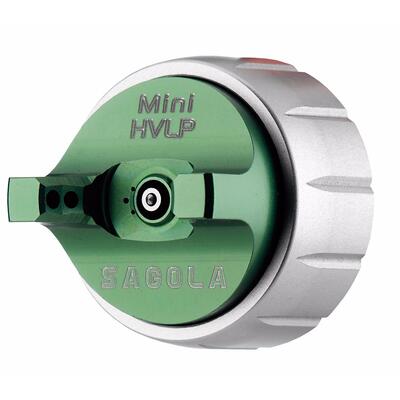

| Air Cap Mini HVLP | |||
|---|---|---|---|
|
0.30 | Special enamels, low viscosity | |
| 0.50 | Special enamels, low viscosity | ||
| 0.80 | Special enamels | ||
| 1.00 | Basecoats | ||
| 1.20 | Basecoats | ||
| 1.30 | Especially for dyes: wood, tanning, footwear | ||
| 1.40 | Primers | ||
| 1.60 | Primers | ||
| 1.80 | High viscosity primers, adhesives | ||
| Air Cap Mini EPA | |||
|---|---|---|---|
|
0.30 | Special enamels, low viscosity | |
| 0.50 | Special enamels, low viscosity | ||
| 0.80 | Feathering. Dyes, basecoats | ||
| 1.00 | Basecoats, single stage, clearcoats and lacquers | ||
| 1.20 | Basecoats, single stage, clearcoats and lacquers | ||
| 1.30 | Basecoats, single stage, clearcoats and lacquers | ||
| 1.40 | Primers | ||
| 1.60 | Primers | ||
| 1.80 | High viscosity primers, adhesives | ||

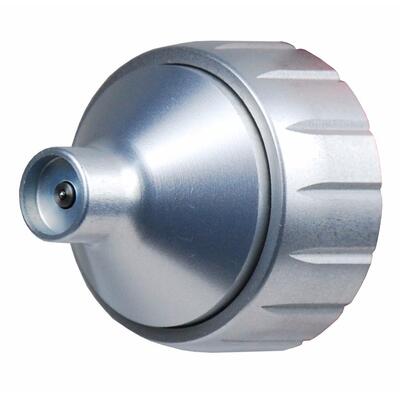

| Air Cap Mini Chorro Redondo | |||
|---|---|---|---|
|
0.60 | Primers for leather with low viscosity products | |
| 1.00 | Lettering and small retouches | ||

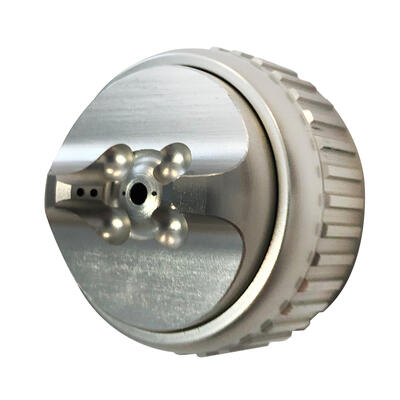

| Air Cap Mini Aero Jet | |||
|---|---|---|---|
|
0.50 | Microatomization | |
| Weight | 216 g |
| Dimensions | 11.6 x 4.8 x 5.8 cm (without bracket) |
| Product inlet | BSP 1/8” |
| Spray air inlet | 8mm |
| Pilot inlet | 4mm |
| Air consumption Mini HVLP | 325 L/min |
| Air consumption Mini EPA | 190 L/min |
| Air consumption - AEROJET | 150 L/min |
| ATEX Ex 2 II GX | Yes |
| Code | Version |
|---|---|
| 10210221 | Spary Gun Mini V 0.50 [mini Aerojet] |
| 10210202 | Automatic Spray Gun Mini V 1.00[MINIHVLP |
| 10210203 | Automatic Spray Gun Mini V 1.20[MINIHVLP |
| 10210204 | Automatic Spray Gun Mini V 1.30[MINIHVLP |
| 10210205 | Automatic Spray Gun Mini V 1.40[MINIHVLP |
| 10210206 | Automatic Spary Gun Mini V 1.60[MINIHVLP |
| 10210207 | Automatic Spray Gun Mini V 1.80[MINIHVLP |
| 10210208 | Automatic Spary Gun Mini V 0.50 MiniHVLP |
| 10210209 | Automatic Spary Gun Mini V 1.00[MINIEPA] |
| 10210210 | Automatic Spary Gun Mini V 1.20[MINIEPA] |
| 10210211 | Automatic Spary Gun Mini V 1.30[MINIEPA] |
| 10210212 | Automatic Spary Gun Mini V 1.40[MINIEPA] |
| 10210213 | Automatic Spary Gun Mini V 1.60[MINIEPA] |
| 10210214 | Automatic Spary Gun Mini V 1.80[MINIEPA] |
| 10210215 | Automatic Spray Gun Mini V 0.80[MINIEPA] |
| 10210216 | Automatic Spray Gun Mini V 0.50 MiniEPA |
| 10210217 | Automatic Spray Gun Mini V 0.30 MiniHVLP |
| 10210218 | Automatic Spray Gun Mini V 0.30 MiniEPA |
| 10210219 | Automatic Spray Gun Miniv 0.60 MINITECHv |
| 10210220 | Automatic Spray Gun Miniv 1.00 MINITECHv |
| 10210201 | Automatic Spray Gun Mini V 0.80[MINIHVLP |
