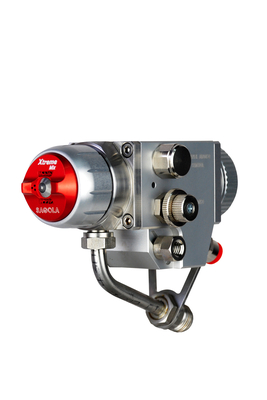

The SAGOLA V7 Mix is a high production low pollution spray gun. Tungsten carbide product closure mechanism.
Includes: product inlet filter, air inlet quick couplings, double fan regulator and cleaning and maintenance accessories.
Applications
- For tasks requiring a high opening and closure rate. Ideal to be used with robots and special machinery.
- For tasks where it is necessary to reduce mist and improve work conditions.
- Achieves a drastic reduction in product consumption.
- Spraying of clearcoats, UV paints, etc.
Paint flow regulator
With integrated adjustable micrometer for a precise and homogeneous paint regulation of all the guns in the line.
Detachable paint-head
Independent from the pneumatic zone, with four leak detection holes between them, covering all possible angles. 100% stainless steel option.
Fan control regulator
This regulator controls the quantity and distribution of air between the lugs and central holes, allowing a perfect distribution of the spray pattern independently of the viscosity of the product.
INOX
Automatic paint packing gland without gaskets that require handling.
Nozzle and Needle. Made of stainless steel. Optional Carbide.
Fan regulator
This regulator allows us to adjust the size of the fan (of the atomisation air).
New mooring and guidance systems
This new system allows removal and replacement of the spray gun from its workstation, keeping always with the same orientation.
Waste time spent adjusting spray guns at their workstations is eliminated completely.
| Working pressure | 30/150 bar |
| Minimum operational pressure | 3,5 bar |
| Dimensions | 164 x 45 x 104 mm |
| Weight | 945 g |
| Air consumption | 150 L/min |
| ATEX Ex 2 II GX | Yes |
| Code | Version |
|---|---|
| 35230101 | Automatic Spray Gun Mix V7 13/40 |
| 35230102 | Automatic Spray Gun Mix V7 13/40 (12) |
